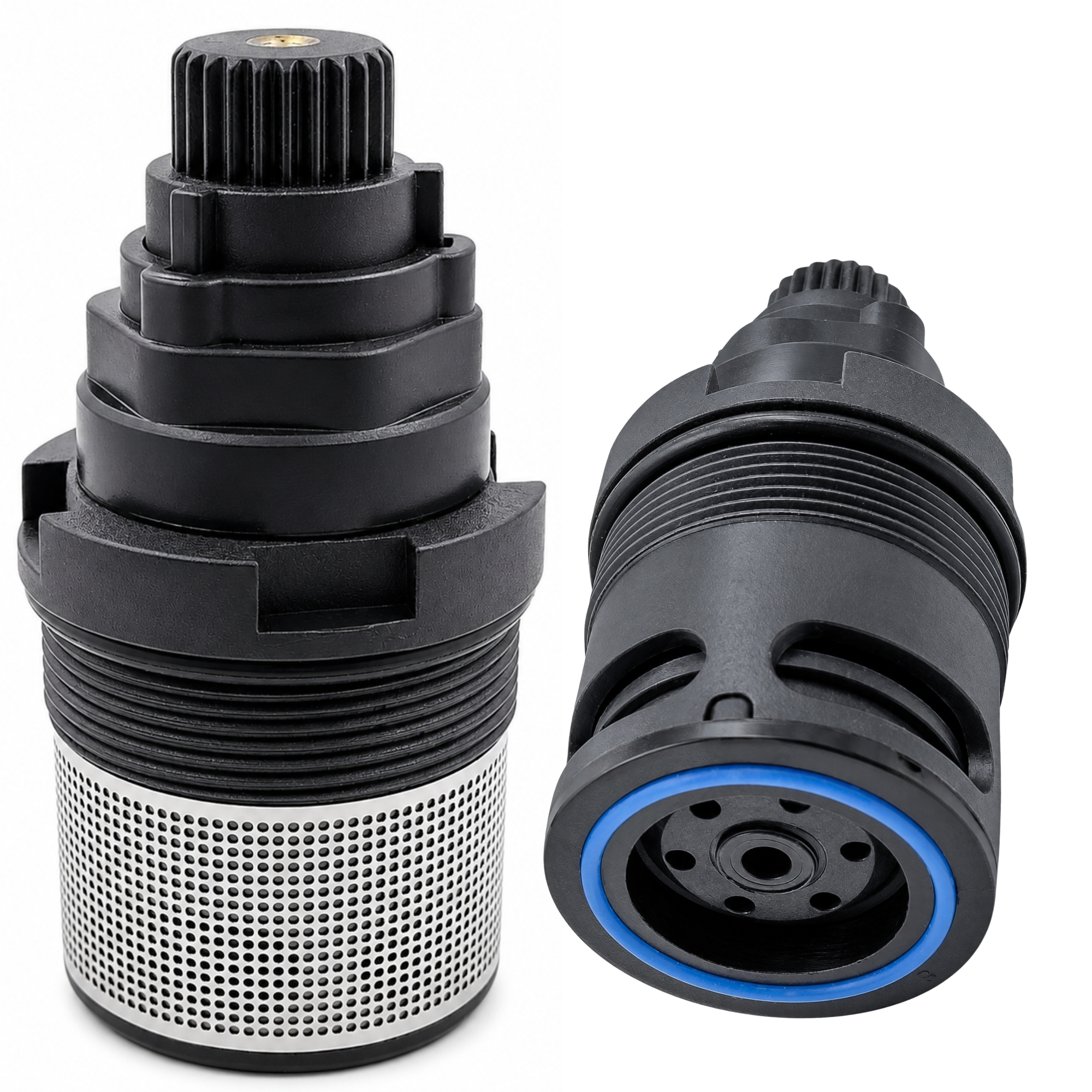

JKC Topsan Type Magnetic Flush Cartridge – (JKC-230)

Magnetic Flush Cartridge – Reliable Flushing, Precision Fit

A leaking or weak-flushing push-button toilet usually doesn’t need a whole new flush valve — just a worn-out cartridge replaced with a precise, well-made one. The JKC Emart Magnetic Flush Valve Cartridge is a 32mm replacement part built around a magnetic sealing mechanism, designed to help restore a tighter, more reliable shut-off and smooth single-flush performance without replacing the entire flush valve assembly.

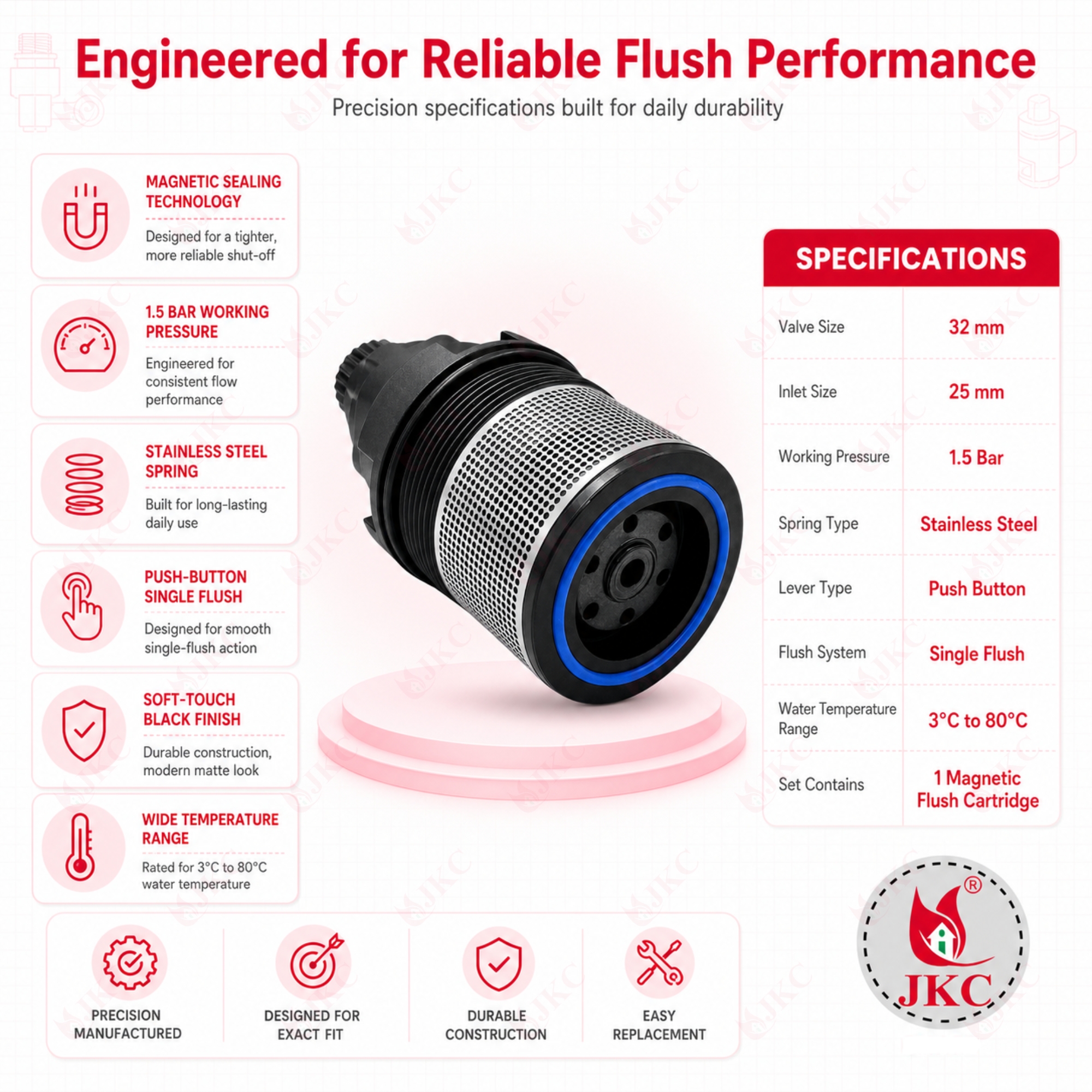

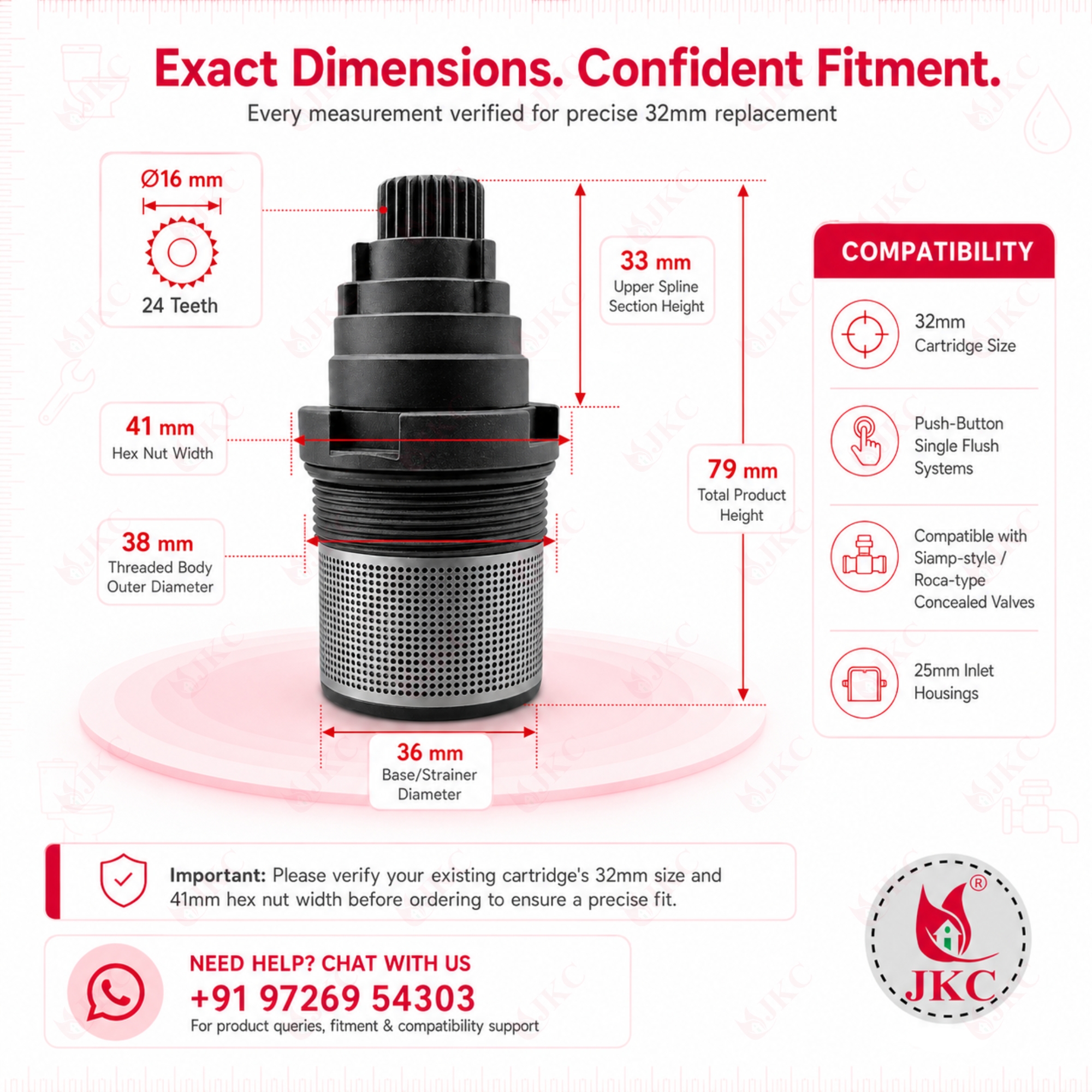

Specifications

• Valve Size: 32mm
• Inlet Size: 25mm
• Total Height: 79mm
• Upper Section Height: 33mm
• Hex Collar Width: 41mm
• Threaded Body Diameter: 38mm
• Base Diameter: 36mm

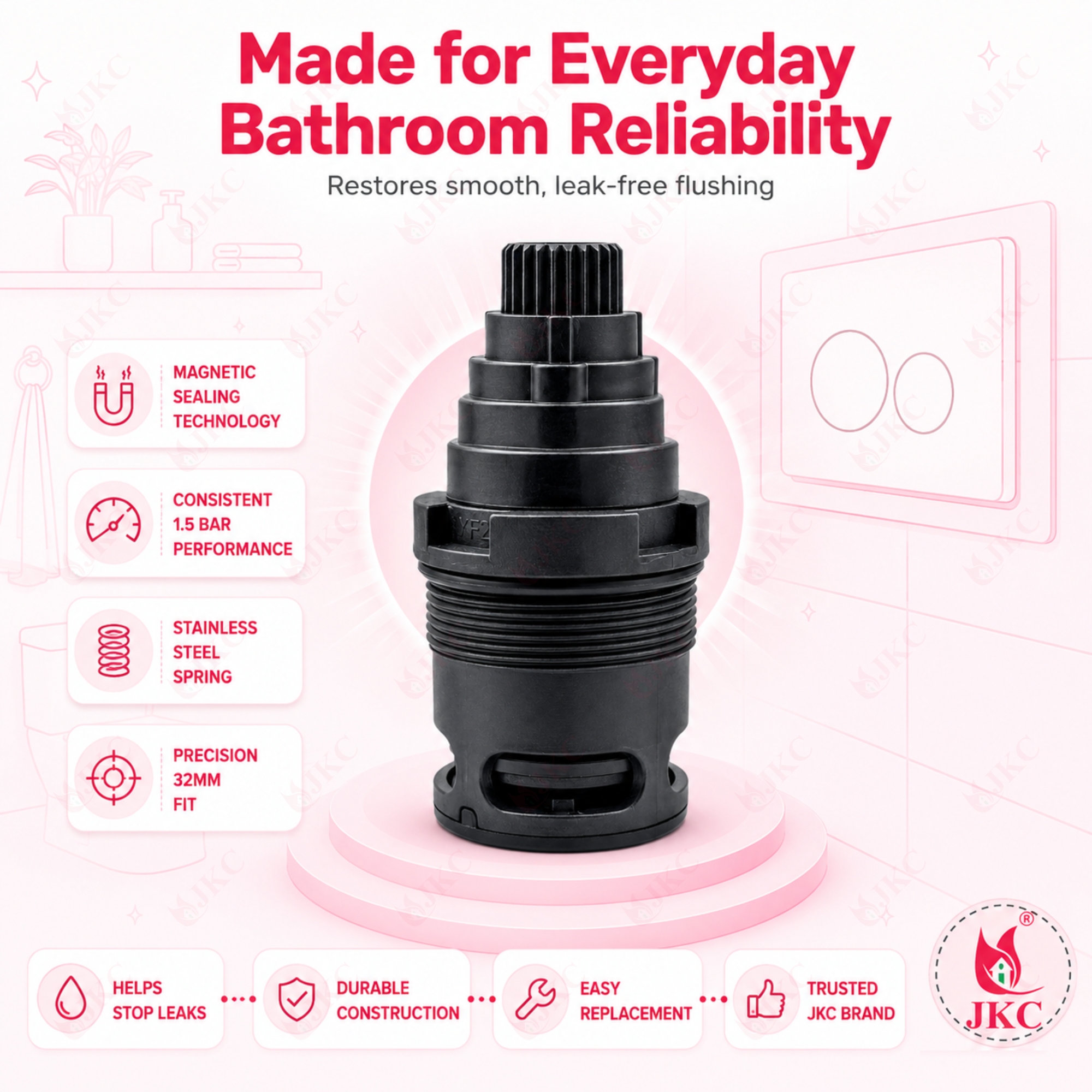

• Drive Head: Ø16mm bore, 24-tooth splined engagement
• Working Pressure: 1.5 Bar
• Spring Type: Stainless steel
• Lever Type: Push button, single flush
• Water Temperature Range: 3°C to 80°C

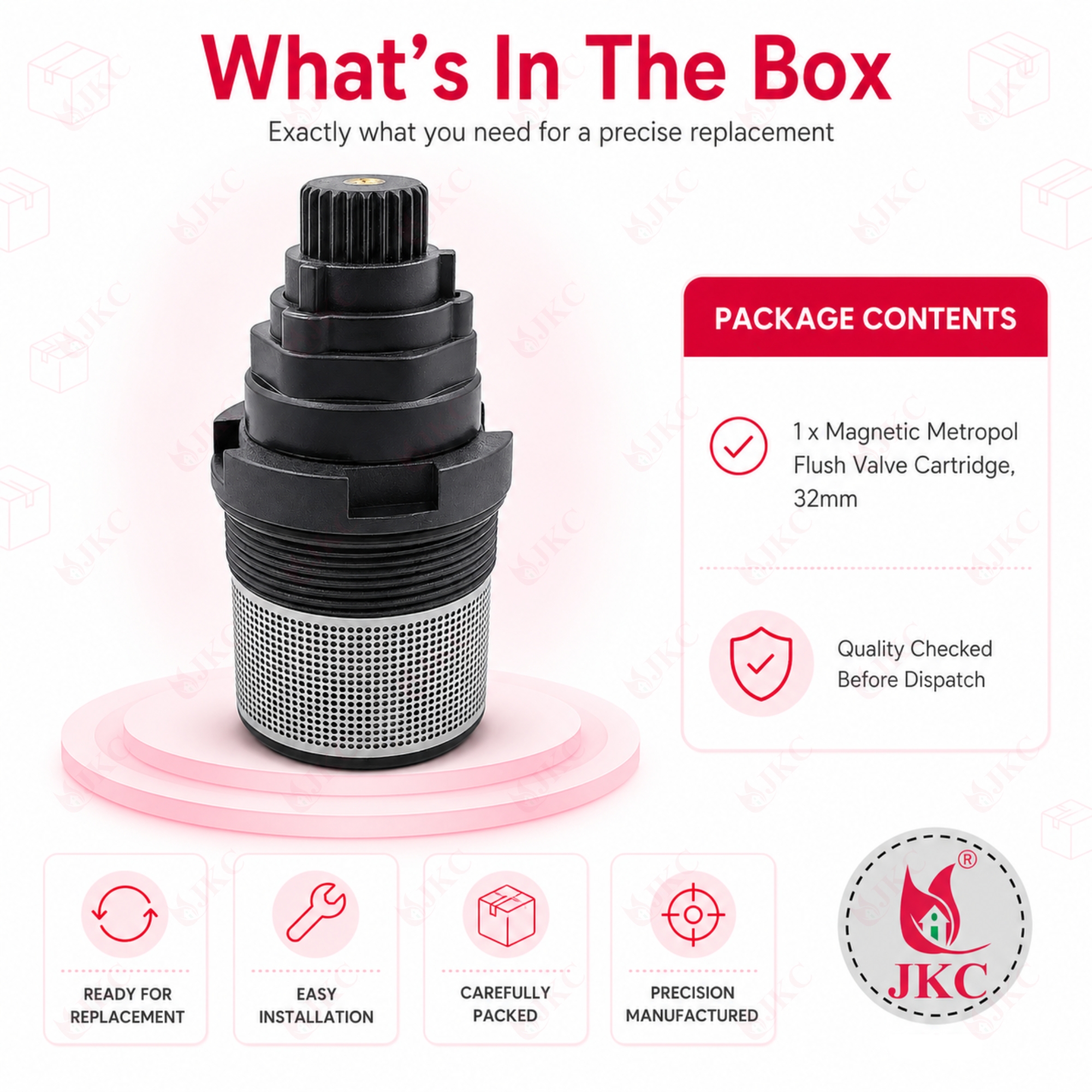

• Set Contains: 1 x Magnetic Flush Cartridge

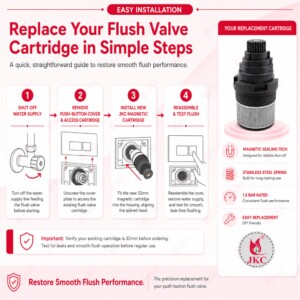

Easy Installation & Use

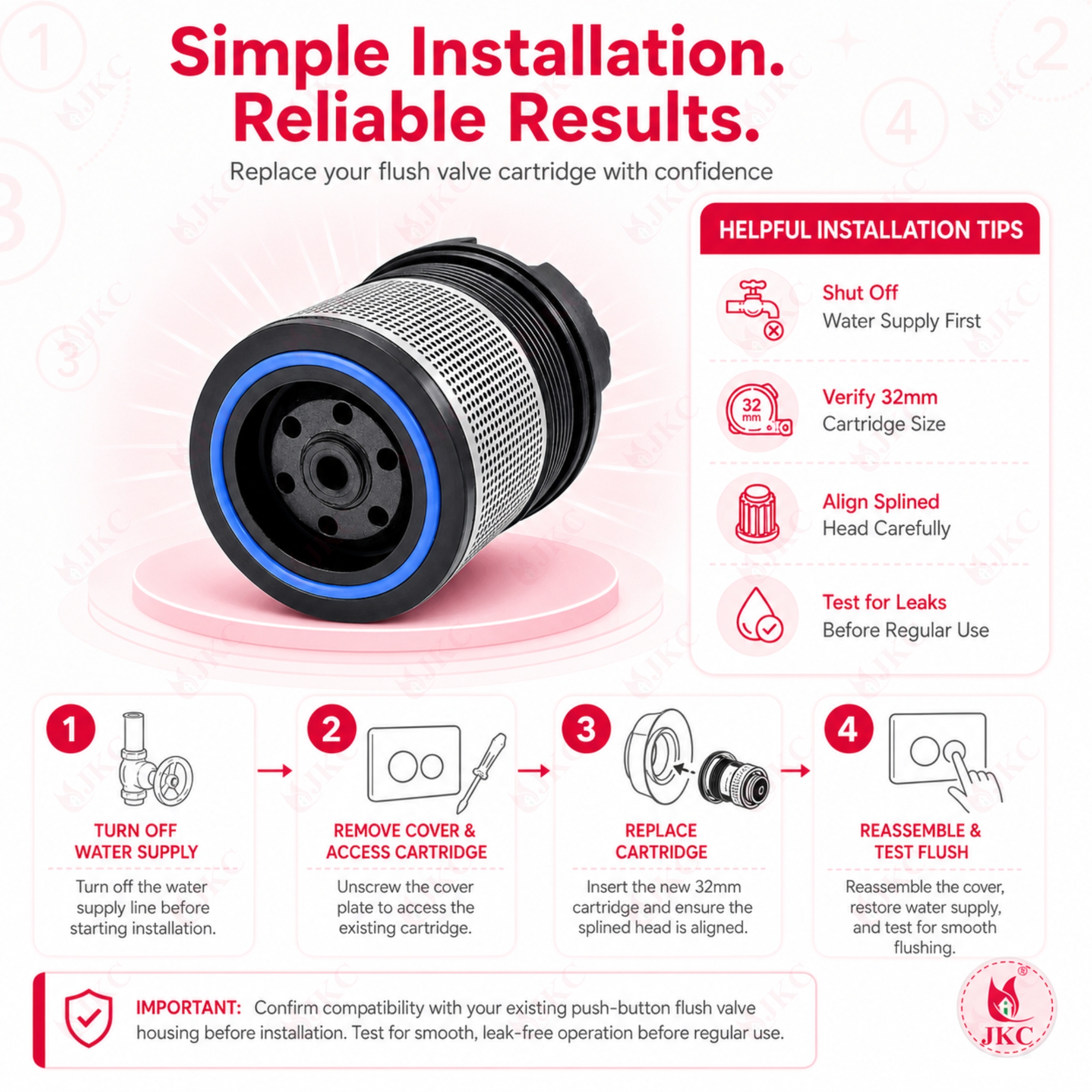

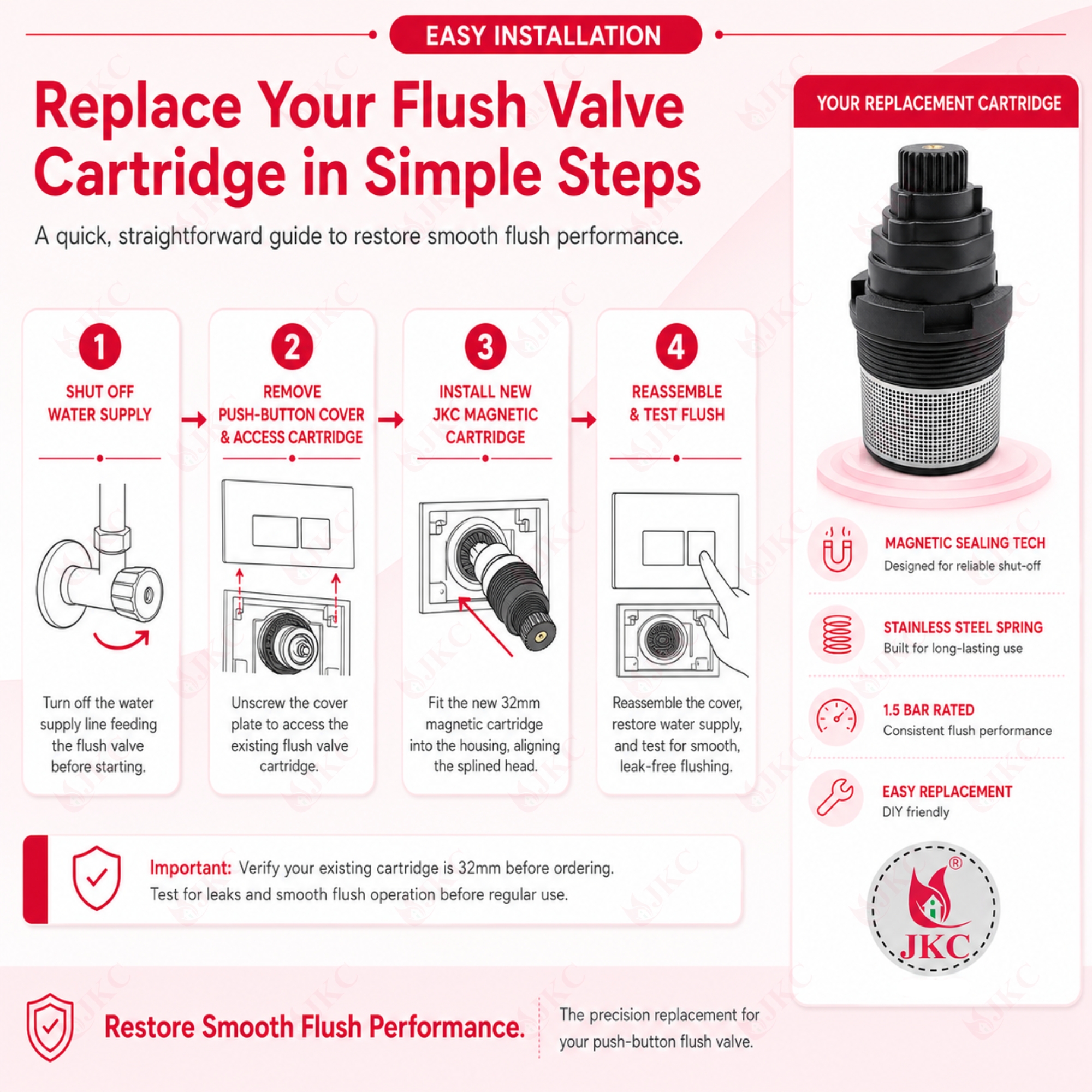

Installation follows four straightforward steps: turn off the water supply feeding the flush valve, unscrew the push-button cover to access the existing cartridge, fit the new 32mm magnetic cartridge and align the splined head, then reassemble the cover and test for smooth, leak-free flushing. No plumber tools are required — the cartridge is designed for hand-tight installation.

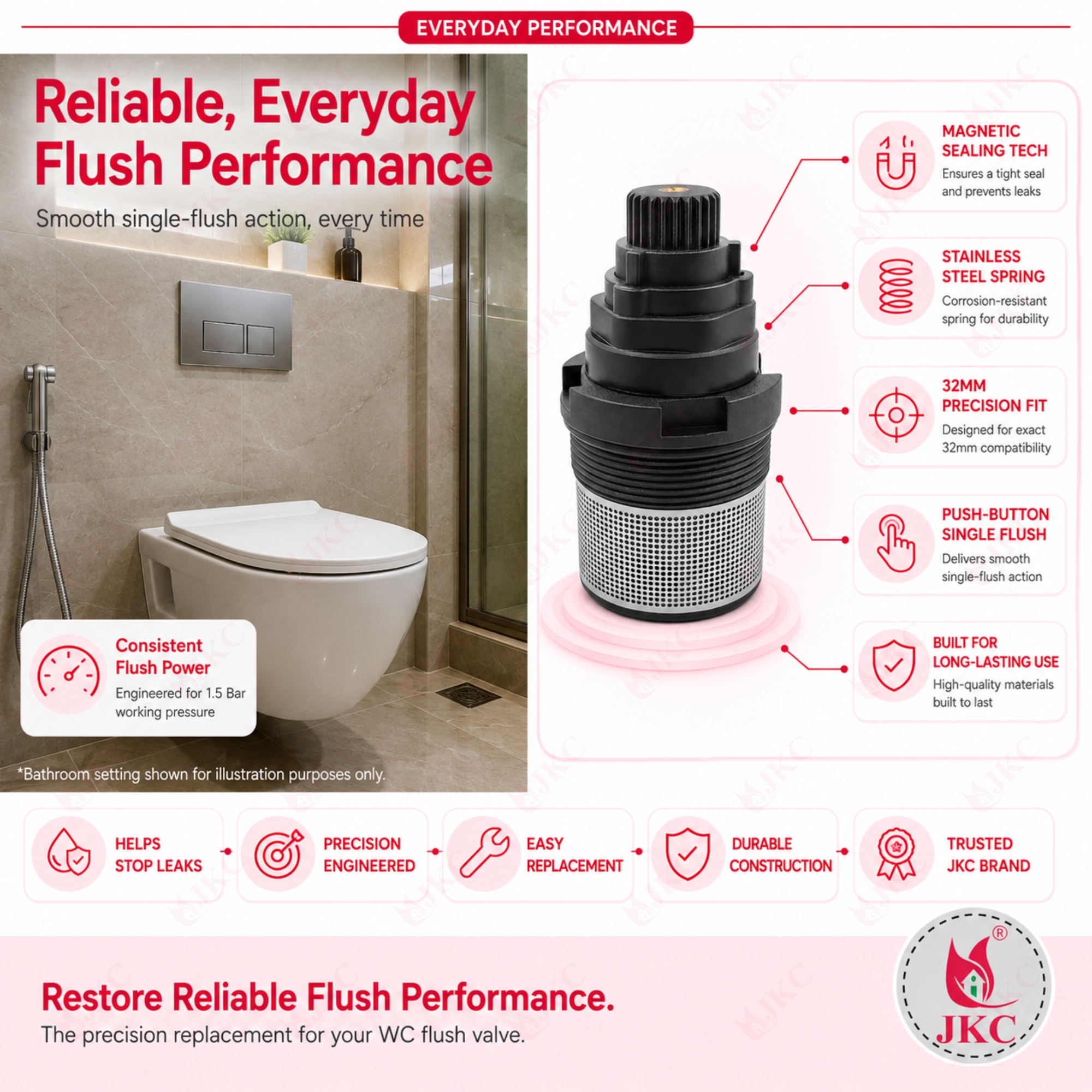

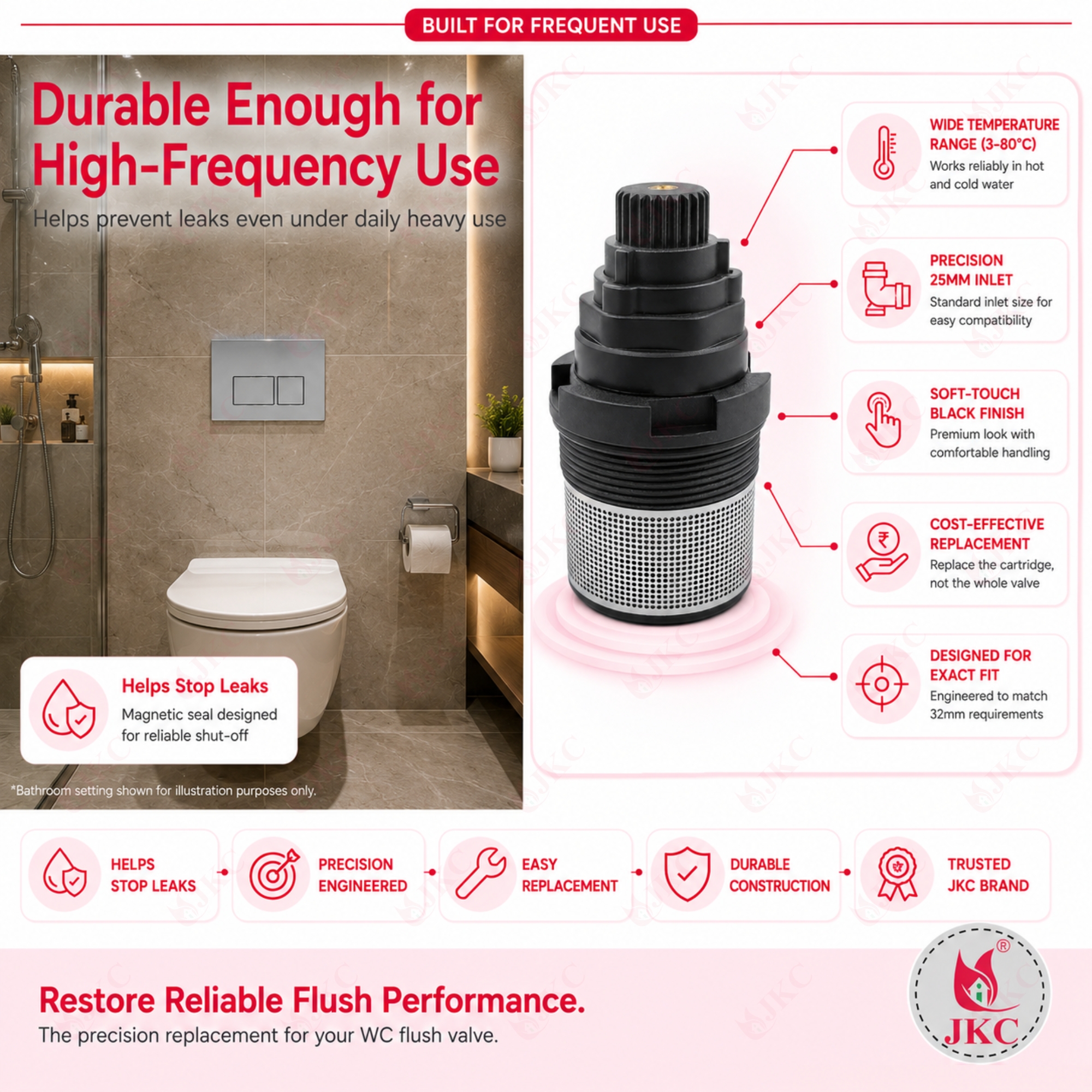

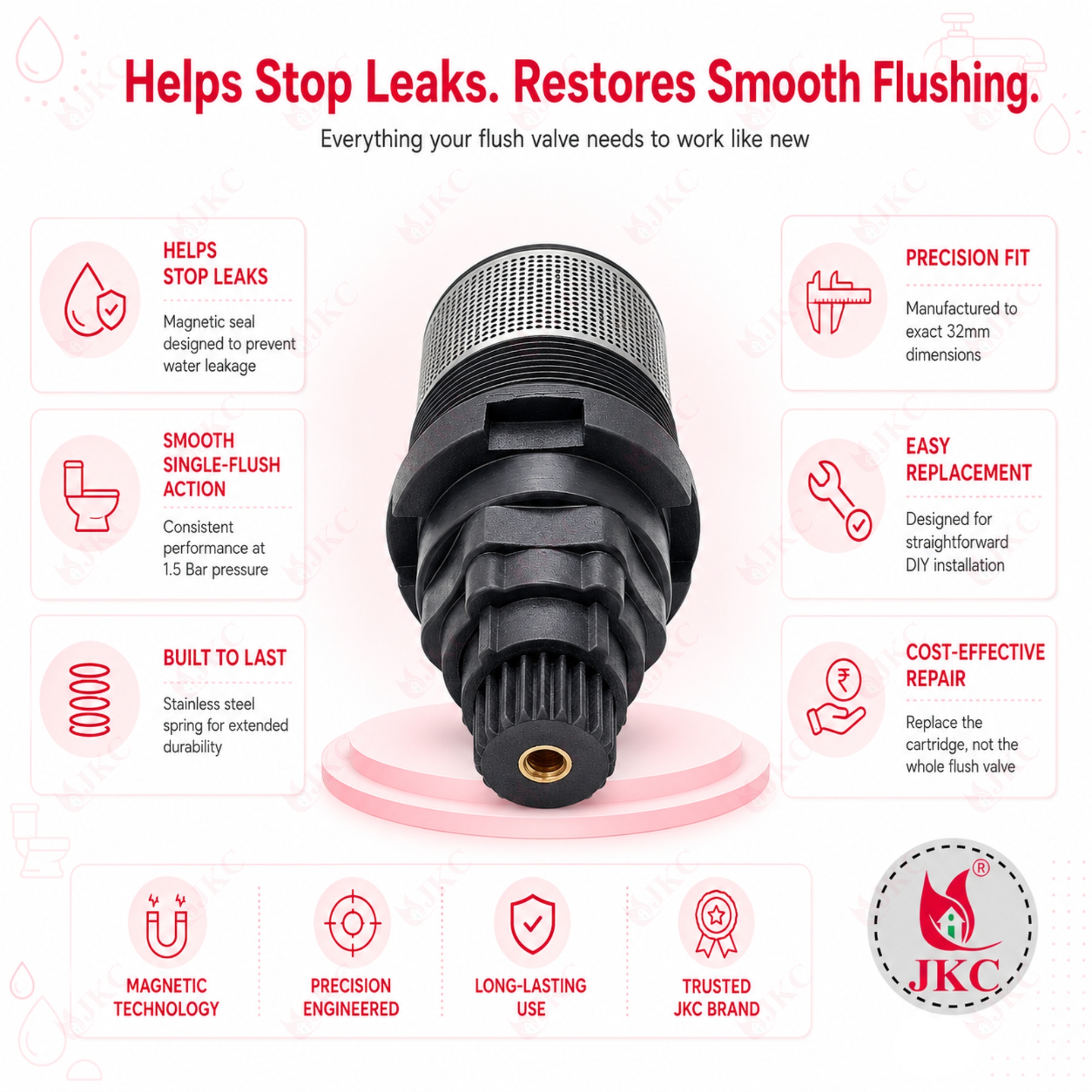

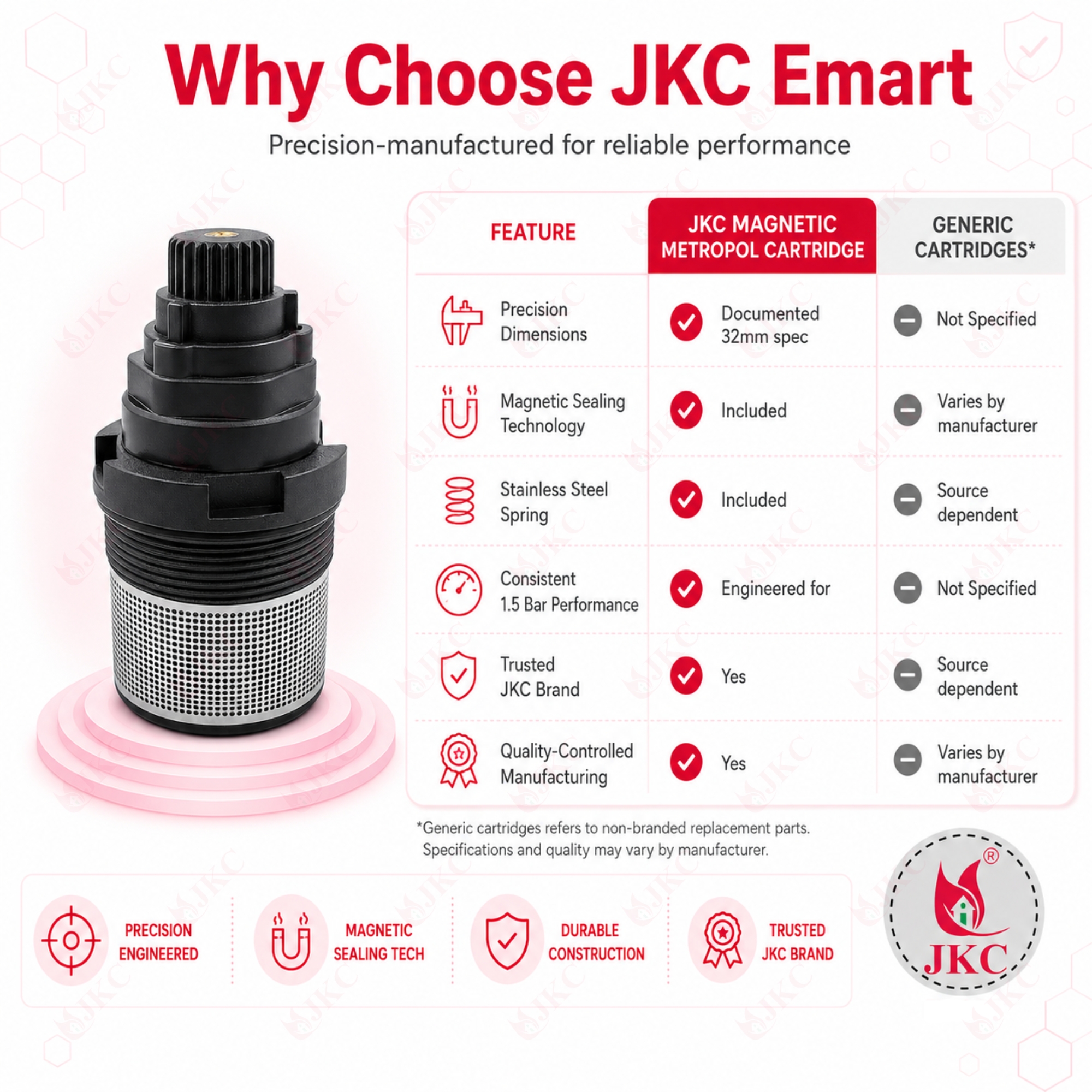

Benefits of the Magnetic Flush Valve Cartridge

• Helps Stop Leaks: Magnetic sealing mechanism designed for a tighter, more reliable shut-off
• Consistent Flush Performance: Engineered for smooth operation at 1.5 Bar working pressure
• Built for Long-Lasting Use: Stainless steel spring construction across a wide 3°C to 80°C water temperature range
• Cost-Effective Replacement: Replace just the cartridge instead of the entire flush valve assembly
• Precision Fit: Manufactured to an exact 32mm / 41mm / 79mm dimension profile

Who Can Benefit?

Homeowners: a straightforward DIY fix for a leaking or weak-flushing push-button toilet.

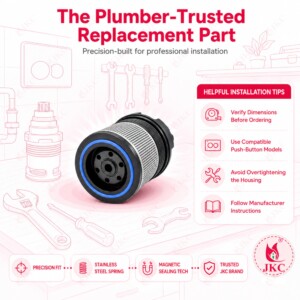

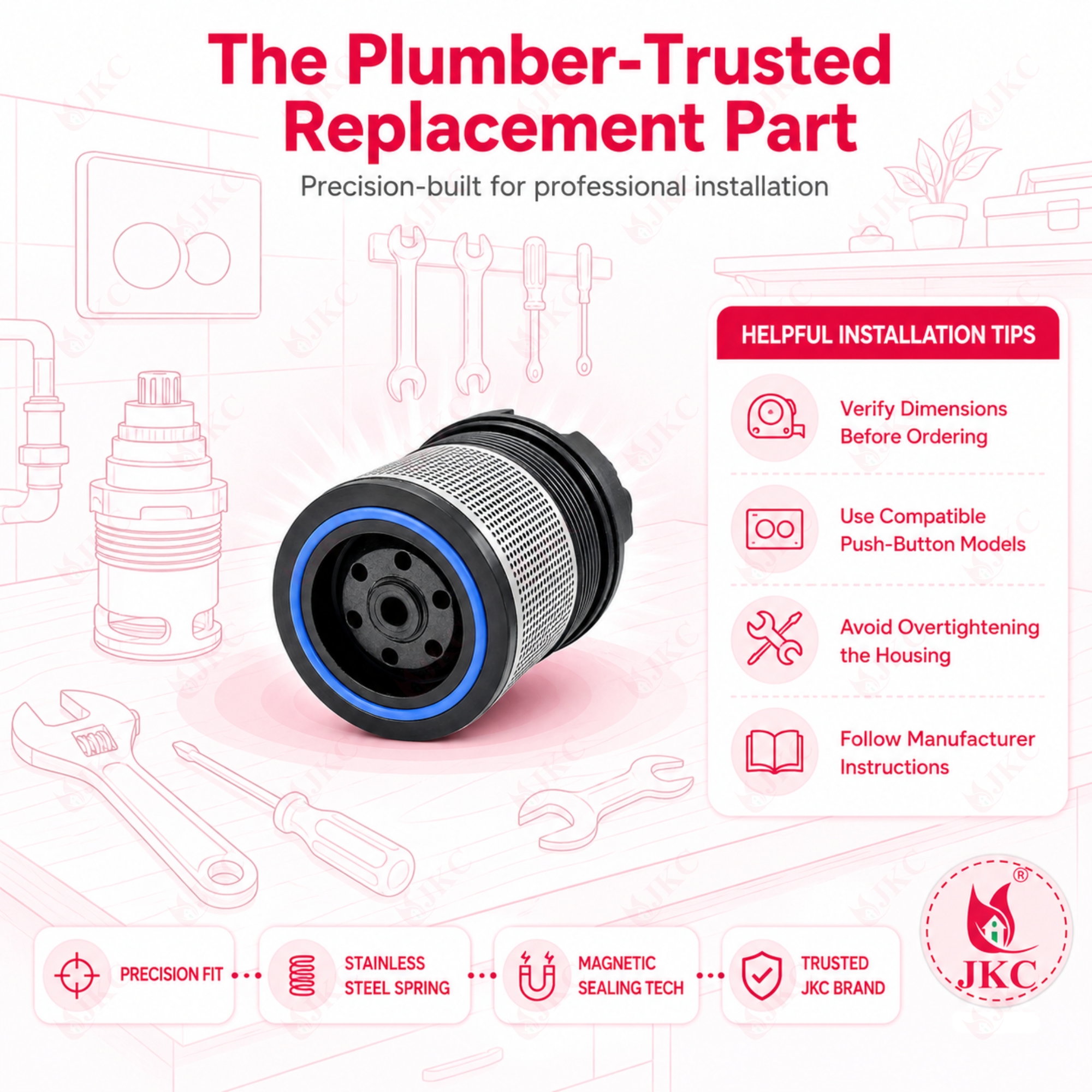

Plumbers: a precision-dimensioned stock cartridge for flush valve repair callouts across Gujarat.

Hardware Retailers: a reliable spare-part SKU for customers replacing Jaguar-type and Siamp-style Metropole flush valve cartridges.

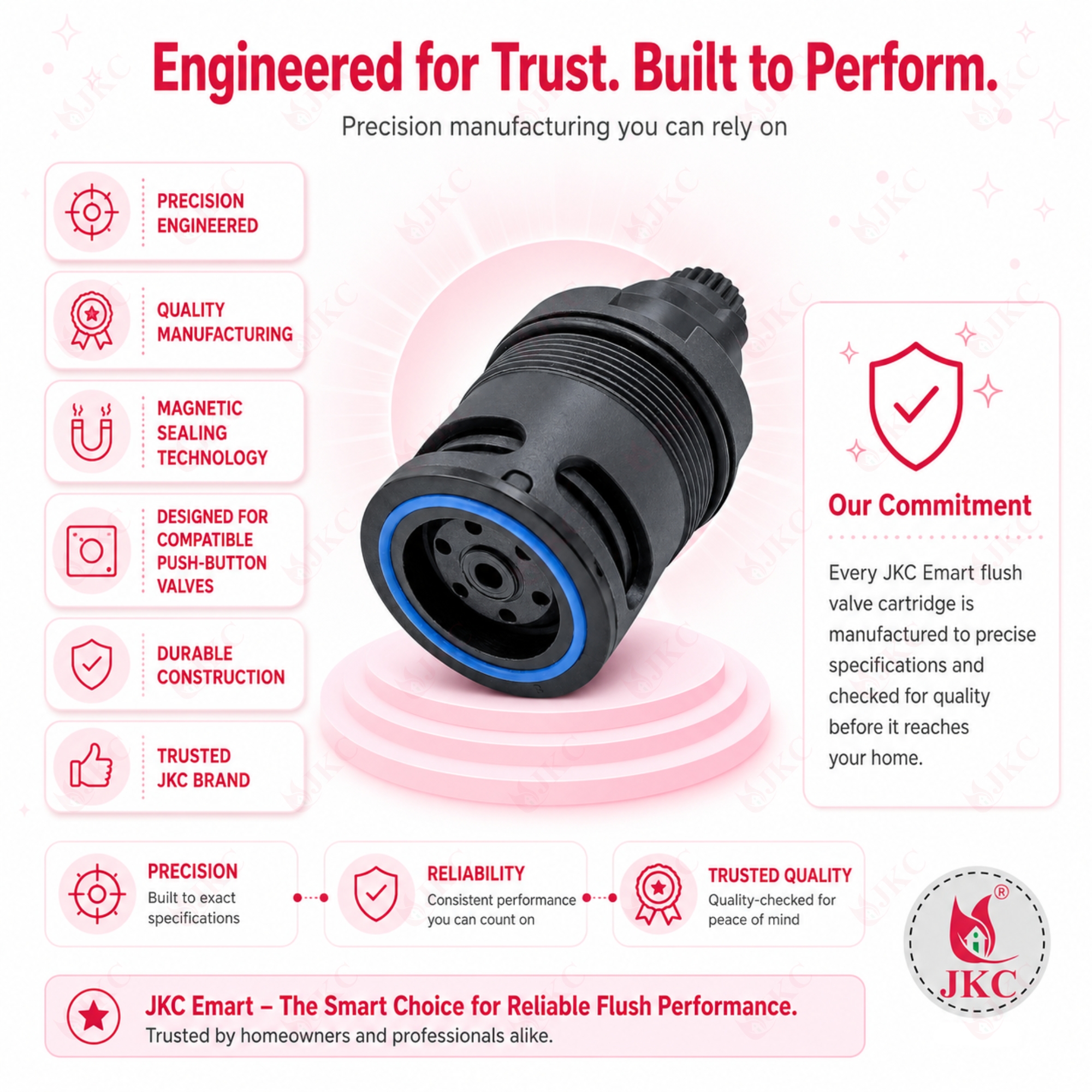

About JKC Emart

JKC Emart is a Vadodara-based brand specializing in precision-manufactured bathroom and kitchen fitting spare parts, including diverter cartridges, tap spindles, flush valve components, and concealed cistern parts for homeowners, plumbers, and hardware retailers across Gujarat. Explore the full range at jkcemart.in.

A Precise Fix for Your Flush Valve

Whether you’re dealing with a continuous drip or a flush that just isn’t performing the way it used to, a precisely-fitted cartridge is often the simplest way back to reliable operation — without the cost or hassle of replacing the entire flush valve.
